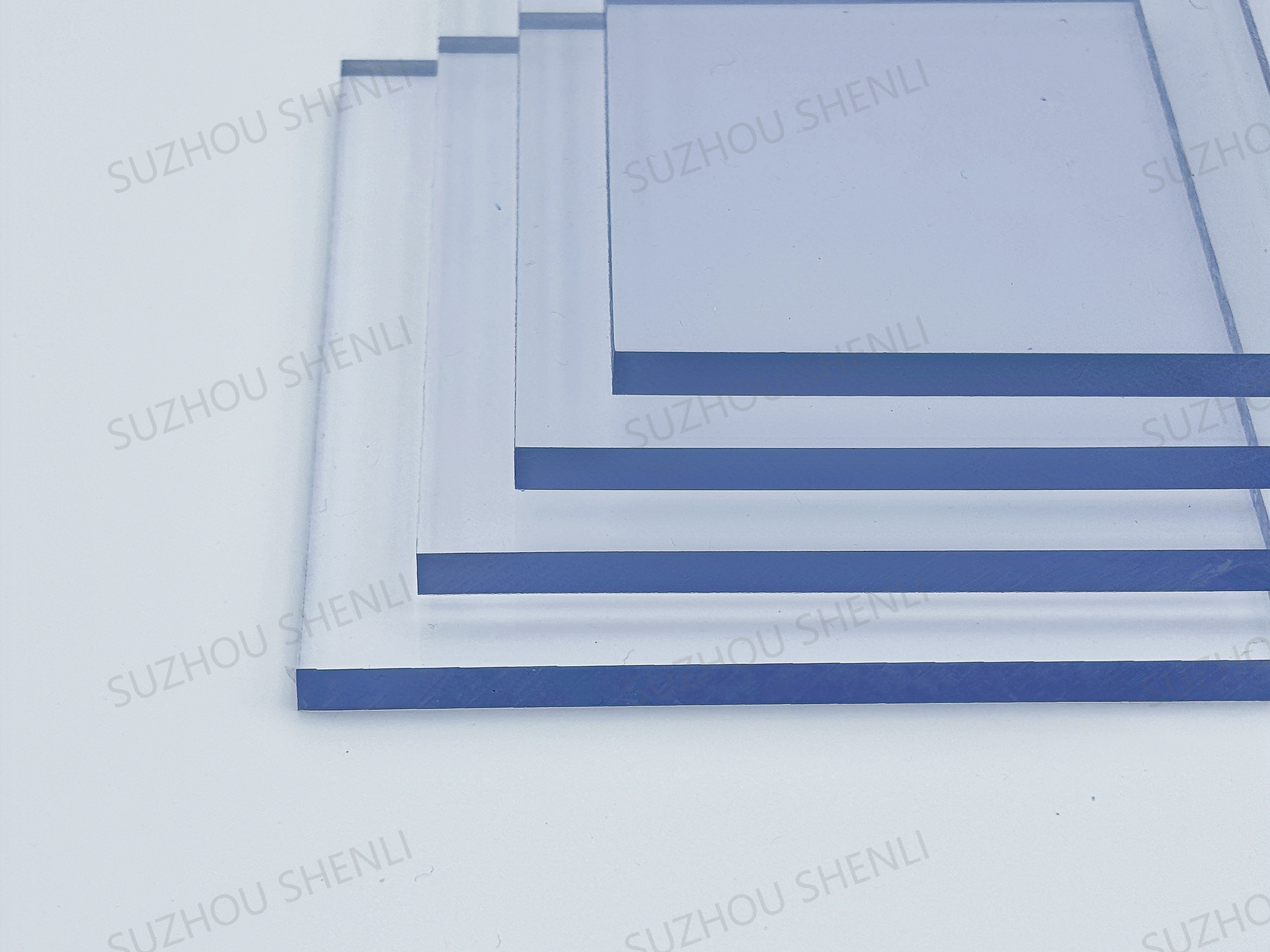

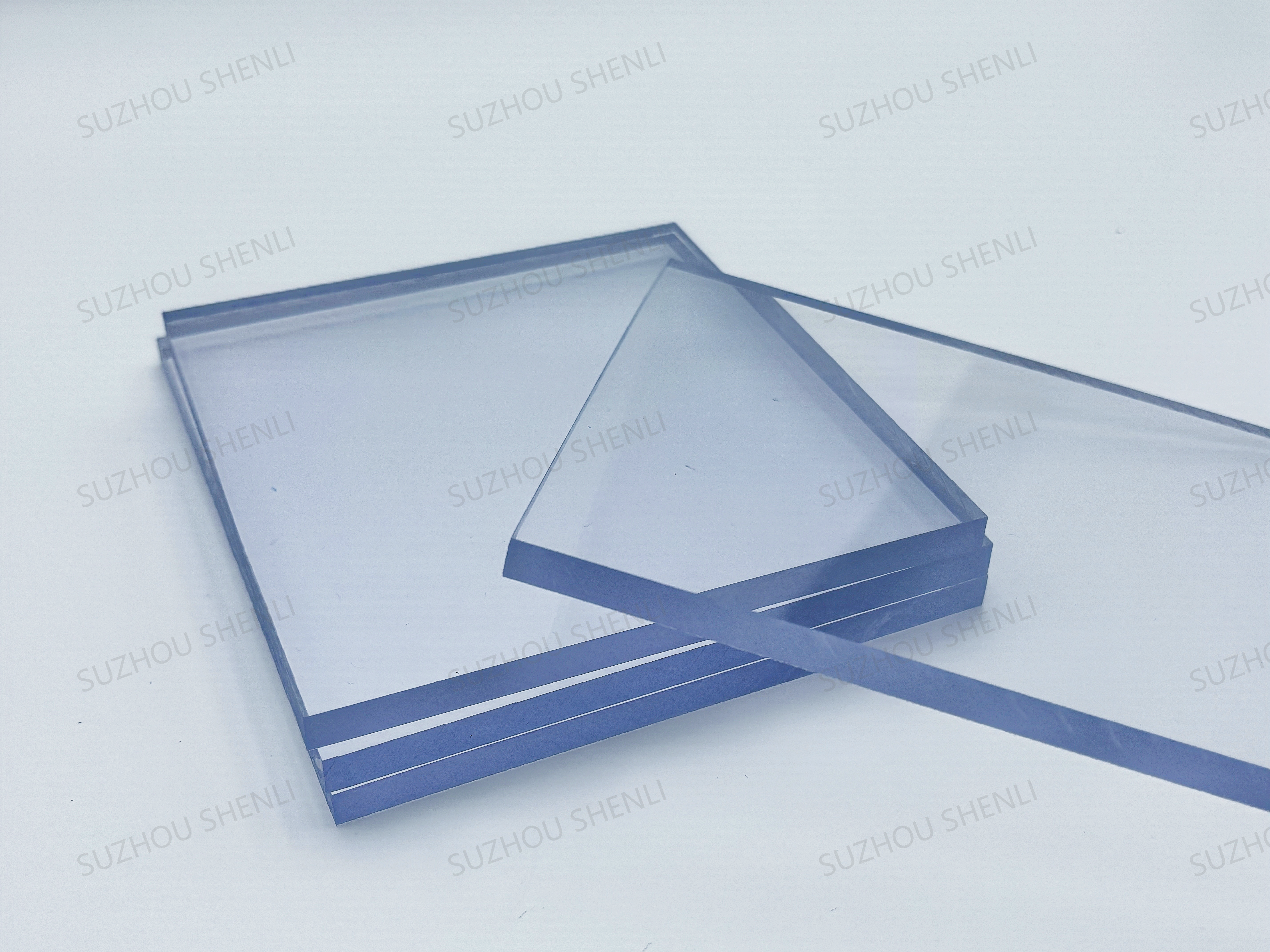

Scratch-resistant Hardened Polycarnate (PC) Sheets
This hardened polycarbonate sheet (DLHC/PC-001) adopts the nano-formula coating process with Suzhou Shenli’s unique characteristics to perform hard coating on the surface of the substrate. It compensates for the low relative hardness of the substrate surface, improves the surface properties of the substrate, and thus achieves anti-scratching effects.
The hardening process increases the product’s service life, expands its usage scenarios, reduces the friction coefficient, and enhances chemical stability. The surface hardness of the PC substrate can be improved from the original 2B to HB-H. The substrate can be selected as industrial grade/optical grade according to requirements.
It is widely used in scenarios requiring scratch resistance, such as protective windows, mechanical parts, home appliance decorative components, window lenses, and resistive touch screens.
Name(Model)
Scratch-resistant Hardened Polycarnate (PC) sheet
Hardness
HB-H
Thickness(in)
0.0118-1.18 (0.3mm-30mm)
Specifications
48.03*96.06 (1220mm*2440mm)
39.37*78.74 (1000mm*2000mm)
It is 118.11 inches long and within 78.74 inches wide(3000mm*2000mm) can be customized
Suzhou Shenli Product Comparison
Excellent Performance
Purchase Notes
Purchase Process
Due to the uniqueness of the product, we support direct purchase of the product or processing with supplied materials.The products are divided into three major categories:
1. Choose the substrate (most customers choose PC/PMMA/PVC; if other materials are required, please contact us)
2. Select the processing program and coverage (anti-static hardening, anti-static, hardening, weather-resistant hardening, anti-glare/anti-reflective hardening, anti-fog, high wear-resistant hardening (anti-fingerprint), with different functions available for both sides of the board)
3. Protective film (If customized products require special laminating or other requirements, please inform us in advance)
4. For processing with supplied materials, a working margin of 3-5MM should be left
Product storage
The board should not be directly exposed to sunlight, high temperatures, or high humidity. It must be stored flat in a well-ventilated and dry environment at room temperature. Before processing and using the board, do not remove the protective film, as this will affect its service life. Use it as soon as possible to avoid the protective film becoming too sticky after years of storage, which may leave residual adhesive on the board surface after removal.
Precautions
Due to factory direct sales and the special nature of the product, the prices of raw materials fluctuate every week. The overall price of the product may vary depending on factors such as the thickness and size of the board, whether it is conventional, specific hardening requirements, and whether it is single-sided or double-sided. Please refer to the specific quotation for accuracy
Factory shooting
